MS-390

Detail

Parameters

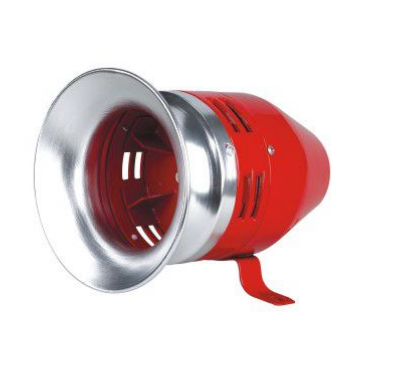

Electric Moter Alarm Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.

Ms-390 Electric siren suitable for in a variety of crane, ship, fire alarm system, and Banks, security alarm system

Body standard color : RED
Material : Aluminum and steel
Insulation resistance : 100MΩ(at 500 VDC)
Dielectric strength : 500VAC, 50/60Hz in 1 minute
Protection class : IP44

Technical data

Model	Voltage	Current(A)	Frequency(Hz)	decibel	Packing Size	QTY	Weight
MS-390	DC12V	12.4	50/60	125dB	57.54134 cm	10pcs	16KGS
	DC24V	6.8	50/60	125dB			16KGS
	AC110V	1.5	50/60	125dB			22KGS
	AC220V	1.0	50/60	125dB			22KGS
