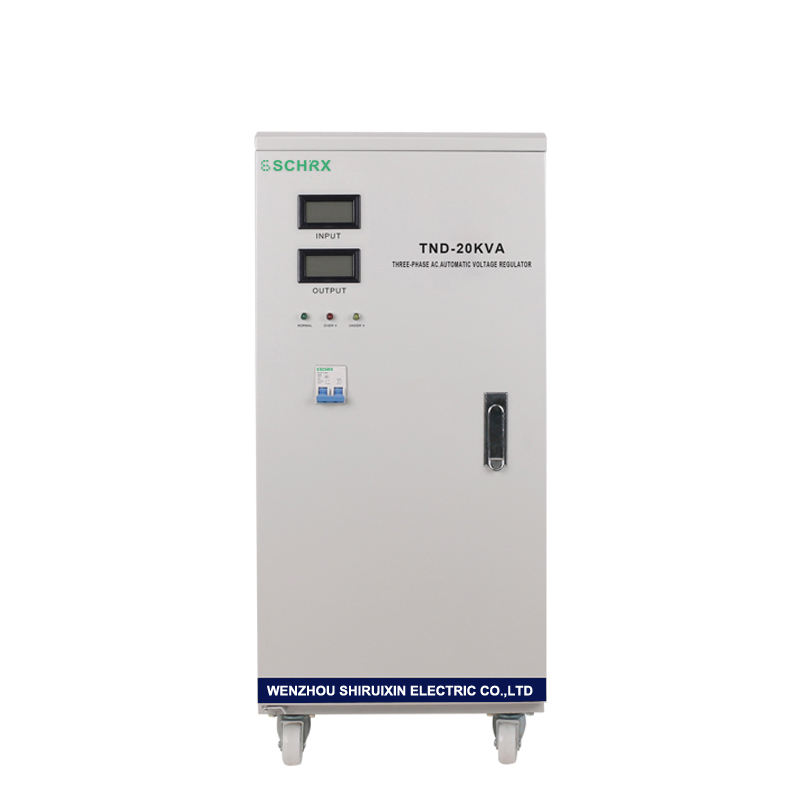

TND-20KVA
TND-20KVA
TND-20KVA
- Detail
- Parameters
Main Technical Parameter:
Input Voltage | 150V~260V |
| Output Voltage | 220V&110V(0.5KVA~3KVA) 220V(5KVA~30KVA) |
| Regulation Accuracy | Phase Voltage 220±3% 110±6% |
| Frenquency | 50/60HZ |
| Overvoltage Protection | 246±4% |
| Response Time | Within 1 Sec. against 10% Input Voltage Deviation |
| Environment Temperature | -10 ℃ to +40 ℃ |
| Increased Temperature | <60 ℃ |
| Waveform Disortion | No-lack Distortion in Waveform |
| Overload Power Factor | 0.8 |
| Intensity of Electricity Resistance | 1500V/1 Min |
| Insulation Resistance | >5MΩ |
Overall Size&Weight:
| Model | Outline(cm) | Package Size(cm) | QTY/CTN | Weight(kg) |
| SVC/TND-0.5KVA | 19*17*13.5 | 44*24.5*35 | 4 | 15 |
| SVC/TND-1KVA | 22*20.2*16 | 49*28.5*40 | 4 | 20 |
| SVC/TND-1.5KVA | 22*20.2*16 | 49*28.5*40 | 4 | 26 |
| SVC/TND-2KVA | 24.5*25.8*19.5 | 60.5*35*25.5 | 2 | 17 |
| SVC/TND-3KVA | 23.5*29*23 | 61.5*38.5*29 | 2 | 23 |
| SVC/TND-5KVA | 23*31.5*27.5 | 39.5*32*35 | 1 | 13 |
| SVC/TND-10KVA | 31*34.5*53.5 | 45*42.5*62 | 1 | 33 |
| SVC/TND-10KVA | 31*34.5*53.5 | 45*42.5*62 | 1 | 36 |
| SVC/TND-15KVA | 28*38*77 | 49*40*86.5 | 1 | 52 |
| SVC/TND-20KVA | 32.5*38*77.5 | 49*44.5*88.5 | 1 | 59 |
| SVC/TND-30KVA | 37.5*41.5*78.5 | 53*49*88.5 | 1 | 74 |
Introduction
Voltage Stabilizer
Spec
TND-20KVA
Material
Copper Coil
Brand
SCHRX
Model
TND-20KVA
