DZ30LE-32

  • Detail
  • Parameters

AC 50Hz/60Hz
rated voltage 230V
used as electron shock protection
It can protect circuit form overload and short circuit

Application

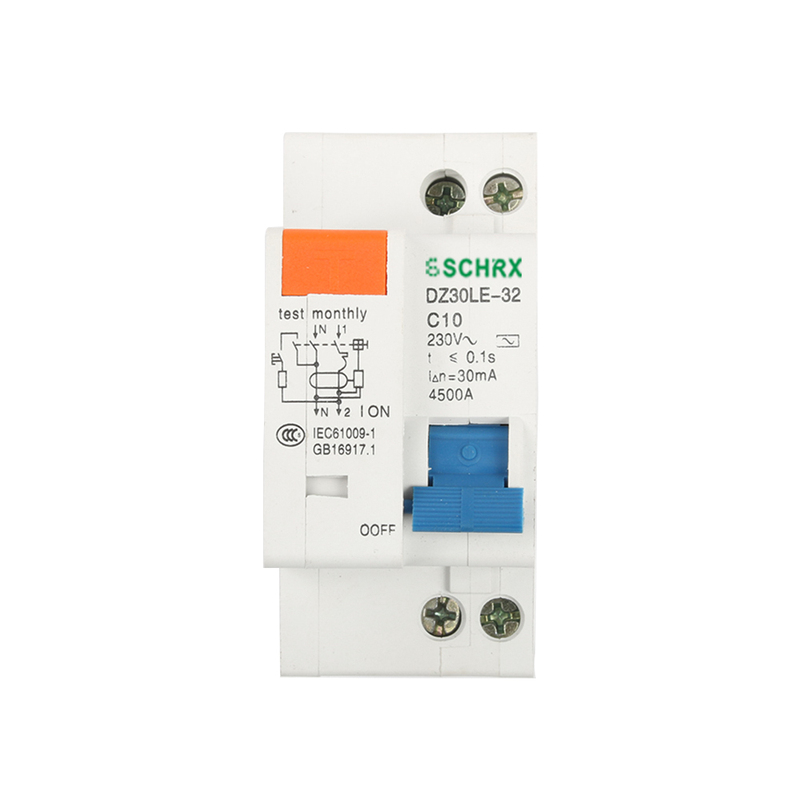

DZ30LE-32 is used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time, also protecting person from electric shock when the live wire connected opposite. It conforms with the standards of IEC61009.

Main Technical Parameter

TypeDZ30LE-32
Pole1P+N
Rated current (A)6,10,16,20,25,32
Rated voltage(V)230
Rated residual action current In(A)0.03
Rated residual non-action current Ino(A)0.015
Rated residual making/breaking capacity Im(A)500
Type of instantaneous releaseC
Rated making/breaking capacity Im(A)4500

Applicable conducting wire

Rated current(A)Norminal cross section of wire mm2
In le 61
6< In le 131.5
13 < In le 202.5
20 < In le 254
25 < In le 326

Residual current breaking time

In (A)In (A)Breaking time(s) when equals to rating following
In2In5In5,10,20,50,100,200,500a(A)Itb
6-320.030.10.060.040.040.04

The over-current protection property

Ambient TemperatureInitial StatusTest CurrentExpected ResultExpected ResultNote
Cold position1.13Int ge 1hNon-release-
30plusmn2oCCarried out immediately after previous test1.45Int<1hRelease-

Cold position2.55In1s < t < 60sReleaseCurrent smoothly rises to specified value within 5s
-5~+40oCCold position5Int ge 0.1sNon-releaseType C
Cold position10Int < 0.1sReleaseType C
