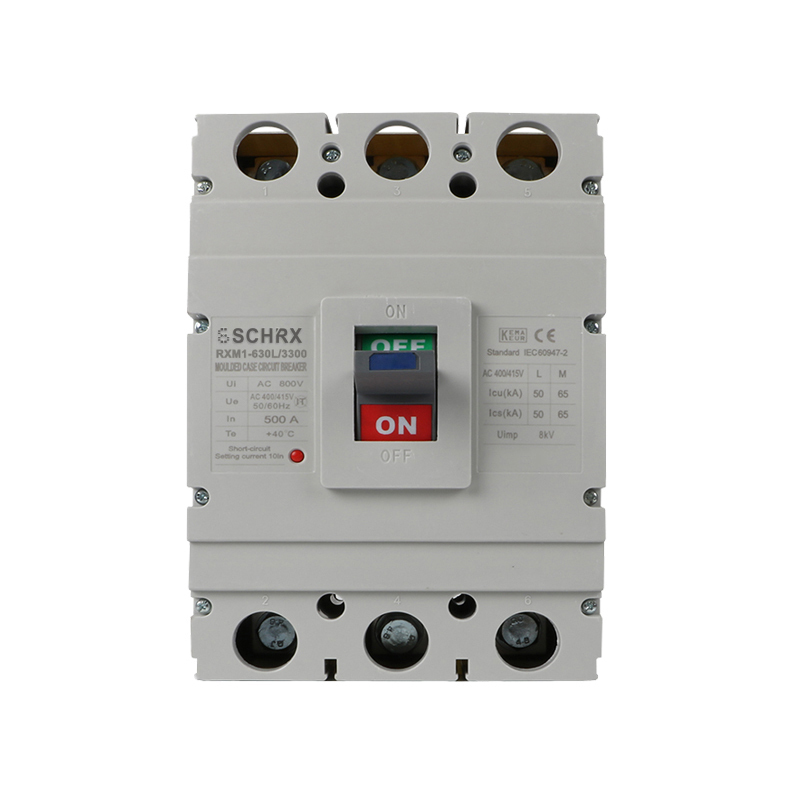

MCCB-630L

MCCB-630L

share

MCCB-630L

Detail

Parameters

Type	Rated current (A)	Number of Poles	Rated insulation Voltage (V)	Rated operating voltage (A)	Arcing-over distance (mm)	Ultimate short circuit breaking capacity (KA)	Service short circuit breaking capacity (KA)	Operation performance
Type	Rated current (A)	Number of Poles	Rated insulation Voltage (V)	Rated operating voltage (A)	Arcing-over distance (mm)	Ultimate short circuit breaking capacity (KA)	Service short circuit breaking capacity (KA)	ON OFF
RXM1-63L	6,10,16,20,25,32,40,50,63	3P,4P	660V	380V	0	25	18	1500 8500
RXM1-63M	6,10,16,20,25,32,40,50,63				0	50	35
RXM1-100C	10,16,20,25,32,40,50,63,80,100				0	25	18
RXM1-100L					0(≤50)	35	22
RXM-100M					0(≤50)	50	35
RXM1-100H					0(≤50)	85	50
RXM1-225C	100,125,160,180,200				≤50	25	18	1000 7000
RXM1-225L					≤50	35	22
RXM1-225M					≤50	50	35
RXM1-225H					≤50	85	50
RXM1-400C	225,250,315,350,400				≤50	35	25	1000 4000
RXM1-400L					≤50	50	35
RXM1-400M					≤50	65	42
RXM1-630C	400,500,630				≤100	35	25
RXM1-630L					≤100	50	35
RXM1-630M					≤100	65	42
RXM1-630H					≤100	100	65
RXM1-800M	630,700,800				≤100	65	42
RXM1-800H	630,700,800				≤100	100	65

Introduction

Circuit Breaker

Spec

RXM1-630L

Material

Silver Contact

Brand

SCHRX

Model

RXM1-630L
