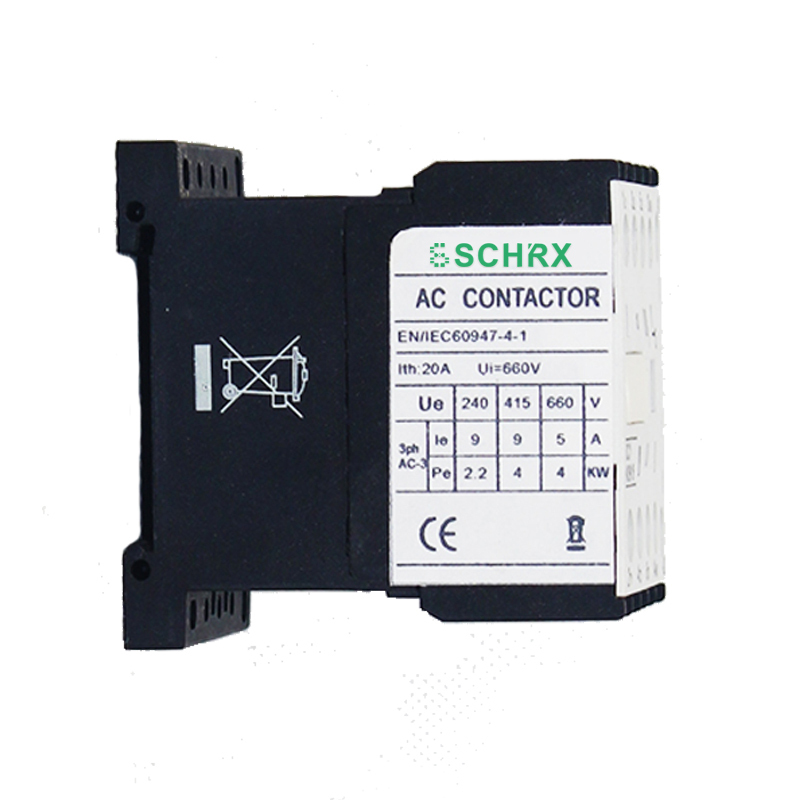

RXC1-0910K

  • Detail
  • Parameters

General of DC mini contactor
Application: Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
DC mini contactor Electric ratings: AC50/60Hz, 690V, up to 12A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
DC mini contactor Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5° ;
DC mini contactor Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.
Control Coil Voltage(AC Coil Operation)

Volts(VAC)24364248110127220230240380415440480500600
                             50HZ
Code                      60HZ
                            50/60HZ		B5C5D5E5F5G5M5P5U5Q5N5R5-S5Y5
B6-D6E6F6G6M6-U6Q6-R6T6--
B7-D7E7F7-M7P7-Q7N7R7---
Control Coil Voltage(DC Coil Operation)
Volts(VDC)12243648110220
CodeJDBDCDEDFDMD
StandardIEC/EN60947-4-1          IEC/EN60947-5-1
Model No.
RXC1-06ERXC1-09KRXC1-12K
Rated Conventional Heating Currentlth(A)162020
Rated Voltage Ui(V)Ui690690690
Rated Operation Current
Ue=380/415V		AC~3 le(A)6912
AC~4 le(A)1.53.55
Power Controlled
3ph cage Motor
AC~3		220/240V KW2.22.23
380/415V KW345.5
660/690V KW5.55.57.5
Electrical lifeAC~3100010001000
AC~4200200200
Mechanical life
101010
Matched FuseSizeRT16-00RT16-00RT16-00
A202020
Main Fuse3P or 4P
Auxiliary circuit1NO or 1NC


Introduction
Contactor
Spec
6-12A
Material
ABS
Brand
SCHRX
Model
RXC1-0910K
